Industrial Systems R-BOX / Containerised RO
Turnkey Water Treatment Solution

R-BOX / Containerised RO

Compact, mobile containerised Reverse Osmosis system ready for immediate field installation and harsh industrial conditions.
Capacity / Flow Customized (500 LPH to 100+ MLD)
Material Grade SS 316 / SS 304 / FRP Vessels
Automation Fully Automatic / PLC & SCADA
Compliance ISO 9001 / CPCB & PCB Norms
Request Commercial Quotation Call Sales Engineer

System Description & Engineering Process

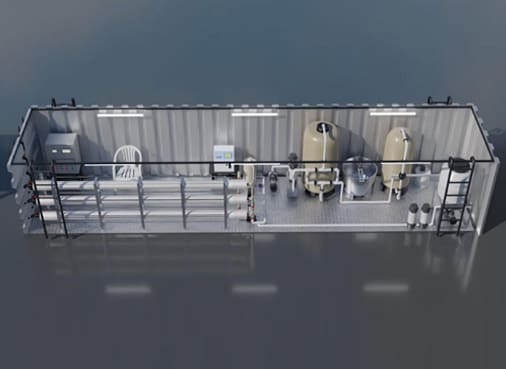

The R-BOX is a self-contained, insulated, containerised Reverse Osmosis unit equipped with climate control, internal lighting, pre-treatment filtration, and full PLC automation for rapid deployment in tough environments.

Key Design Highlights

Fully enclosed ISO shipping container design, climate-controlled internal environment, plug-and-play electrical and hydraulic connections, remote monitoring capabilities.

Standard Technical Parameters

Parameter / Component Engineering Specification
System Model / Type Industrial Grade R-BOX / Containerised RO
Plant Capacity Range 500 LPH to 100,000+ LPH (Customizable)
Feed Water TDS Range Up to 10,000 PPM (High Salinity / Effluent Feed Compatible)
Permeate Water Quality < 50 PPM TDS (Complies with BIS IS:10500 & Boiler Feed Standards)
Pressure Vessel Material FRP (Fiberglass Reinforced Plastic) / SS 316 High Pressure Vessels
High Pressure Pumps Grundfos / CNP Vertical Multistage Stainless Steel Pump
Membrane Element Dow Filmtec / Hydranautics High-Rejection Polyamide TFC
Piping & Valves SS 316 / UPVC Sch-80 Heavy Duty Industrial Piping
Control Automation Microprocessor / PLC Panel with Digital Flow & TDS Meters

Industrial Applications & Target Sectors

Textile & Dyeing Mills

High-volume effluent treatment, color removal, and water recycling for dyeing and washing processes.

Pharmaceutical Manufacturing

High-purity purified water (PW) generation complying with Pharmacopoeia standards.

Food & Beverage Industry

Process water treatment, beverage blending water purification, and CIP rinse water recovery.

Power Plants & Boilers

Ultra-pure demineralized boiler feed water to prevent scaling, pitting, and tube failure.

Chemical & Process Plants

Zero Liquid Discharge (ZLD) integration, hazardous effluent reduction, and chemical recovery.

Commercial Infrastructure

Hotels, hospitals, IT parks, and residential townships requiring clean domestic & STP recycled water.

Frequently Asked Questions

An R-BOX is a self-contained, pre-piped, and factory-tested Reverse Osmosis plant housed within a climate-controlled shipping container. It offers instant mobile desalination and water purification for remote and temporary sites.

R-BOX units are ideal for construction project sites, mining camps, disaster relief operations, offshore rigs, temporary worker housing, and industrial plants requiring rapid water capacity additions.

Yes, R-BOX containerized units feature thermal insulation, heavy-duty industrial HVAC cooling, internal LED lighting, non-slip flooring, and central control panels for safe all-weather operation.

On site, operators only connect the raw water inlet hose, permeate product line, concentrate drain line, and main 3-phase power cable. The system is ready to produce purified water within hours.

Yes, custom R-BOX units are engineered with high-pressure brackish water (BWRO) or seawater (SWRO) membranes capable of treating feed water TDS up to 45,000 PPM.

Direct Quotation Request

Get an Instant Proposal & Plant Layout for R-BOX / Containerised RO

Our senior environmental engineers will evaluate your raw water parameters, required flow rate, and site footprint to provide an accurate technical and commercial proposal.

Immediate Support Hotline +91 93284 66241
Engineering Inquiry Mail info@aquacaresolution.com
